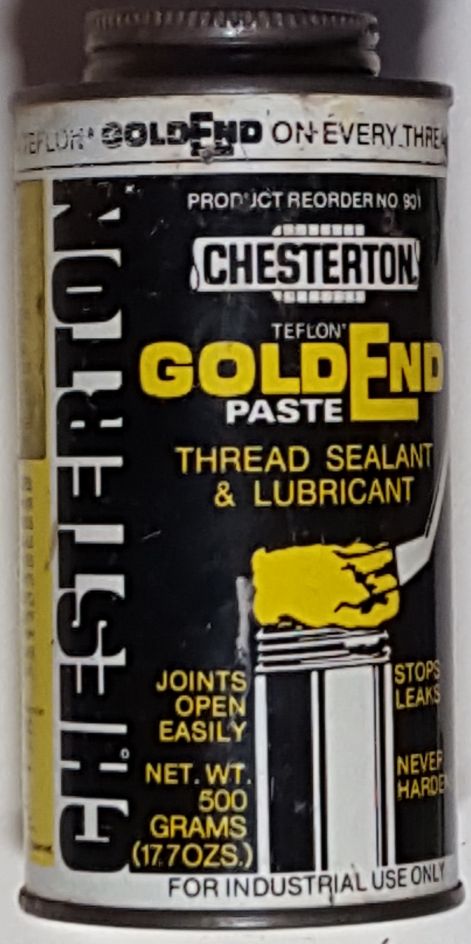

Chesterton GoldEnd paszta(paste).

500 gramm.

6500 Ft



Össze- és szétszereléskor keni a szálakat; PTFE (Teflonnal) dúsított

​​​​​​​​​Nem keményedő, nem korrozív, formázható PTFE menettömítő és kenőanyag a legnehezebb tömítési igényekhez, kötések, pneumatikus szerelvények és hidraulikus vezeték alkalmazásokhz.

Alább  a 900 paszta adatai,ami megegyezik ezzel a korábbival.

https://www.bbcpump.com/wp-content/uploads/manufacturer/900-goldend-paste/Chesterton-900-Goldend-PTFE-Thread-Sealing-Paste-Datasheet.pdf

Typical Physical Properties

Form Soft Paste

Color Golden Yellow
Density 1,4 kg/l (11.8 lbs/gal)Maximum Use Temperature:
As a Lubricant and Sealant 260°C (500°F)
As an Anti-Seize Compound 149°C (300°F)
Maximum Pressure Range 352 kg/cm2 (5000 psi)
for hydraulic fluids7 kg/cm2 (100 psi) for gases
Description
Chesterton® 900 GoldEnd® Paste isa nonhardening moldable PTFE thread
lubricant and sealant. It is a unique,semi-solid paste filled
with ultra-finePTFE particles which crush to fill voids of threaded fittings thereby
preventing by-pass of liquids and gases.
Unlike many thread compounds,

Chesterton 900 GoldEnd Paste will stay soft long after it is applied. This is
because most products contain solvents as diluents and thinners. When these
solvents evaporate, the sealant left behind is hard and rigid.
Chesterton 900 GoldEnd Paste has virtually no solvent - it utilizes pure mineral
oil in its formula to keep it soft and pliable long after application.

Chesterton 900 GoldEnd Paste considerably eases both assembly and
disassembly of pipe joints. Threads lock tightly together as the PTFE lubricates
and flows to fill in voids. PTFE’s low coefficient of friction eases disassembly
of threaded fittings at temperatures where other lubricants have been lost
due to heat. Use up to 260°C (500°F as a lubricant, up to 149°C (300°F)
as an anti-seize compound.

Chesterton 900 GoldEnd Paste is noncorrosive and can be used on metal
or plastic threads. It is recommended for pipe joints, pneumatic fittings and
hydraulic line applications where instant sealing and high pressure capability are
desired.

Chesterton 900 GoldEnd Paste
is available in convenient tubes with applicator tips and in sturdy metal cans
with Chesterton’s unique brush top.
The angled brush reaches into corner of can, permitting use of all of the
contents. Waste caused by regular straight brushes is a thing of the past.

Features
Ultra-fine PTFE Particles
Nonhardening
Noncorrosive
Nontoxic
No Volatile Solvents
NSF H2, P1 - Registration number 133957
UL Listed

Applications
Nonhardening thread sealant and lubricant for liquids, gases, pneumatic or
hydraulic fittings; holds gaskets in place during assembly; anti-seize for bolts and
fittings up to 260°C (500°F).
Can be used for steam, water, salt water, air, fuels, refrigerants, many
acids, alkalies, solvents, gases including hydrogen, ammonia, propane, butane,
nitrogen. Not for use on liquid or gaseous oxygen. For nitric or mixed
acid service, consult factory.

Composition
Chesterton 900 GoldEnd Paste
is comprised of pure PTFE in a nonhardening mineral oil base. Whereas
many competitive thread compounds thin the product and can contain as much
as 25% solvent,
Chesterton 900 GoldEnd Paste contains 99.3% active product.
The viscosity of 900 GoldEnd Paste is lower than many competitive products.
This allows a thin, continuous lubricant film even in very fine threads. A tighter
seal is possible as threads seal more tightly.
Unlike low quality sealing tapes which can tear and contaminate valves and
filters,
Chesterton 900 GoldEnd Paste will seal and stay where it is applied.
Excellent for hydraulic and lubrication lines where clogging, if it occurred,
could be a serious problem.
PRODUCT DATA SHEET
900GOLDEND® PASTE

Safety
Before using this product please refer to the Material Safety Data Sheet (MSDS)
or appropriate safety sheet for your area.
Maximum Pressure Range 352 kg/cm2
(5000 psi) for hydraulic fluids.

Directions
Remove oil, grease, dirt and residual thread cutting oils from threads. Liberally
apply the product to the male threads.
Chesterton® 900 GoldEnd® Paste is recommended for use alone up to the
following limits:
1. Imperial (parallel threads) up to
10 mm (0.4 inch).
2. Conical (tapered) up to 25 mm
(1 inch).
Do not use on liquid or gaseous
oxygen. For larger diameter threads wrap
hemp into the threads before applying


900 GoldEnd Paste.
Technical Data reflects results of laboratory tests and is intended to indicate
general characteristics only. A.W. CHESTERTON COMPANY DISCLAIMS
ALL  WARRANTIES EXPRESSED, OR IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR
USE. LIABILITY, IF ANY, IS LIMITED TO PRODUCT REPLACEMENT ONLY.
860 Salem Street
Groveland, Massachusetts 01834 USA
Telephone: (781) 438-7000 • Fax: (978) 469-6528
www.chesterton.com
© 2014 A.W. Chesterton Company.
® Registered trademark owned and licensed by
A.W. Chesterton Company in USA and other countries. FORM NO. 074480
REV. 12/14
